1. Made of industrial grade material, Fully adapt to special circumstances on bus
2. Sealed, dustproof, waterproof, shockproof and anti-electromagnetic interference
3. Dedicated stable power supply, voltage overload protection
4. With the most advanced Linux system, high-definition LCD display
5. WIFI Communication + USB data acquisition, support remote upgrading
6. Contactless smart card, read/write capability, light display for reading card
7. Live voice prompts, supports 15 kinds of voice prompts: such as "student card", "employee card";
8. Support Mifare1 card, CPU card
9. With Thermal printing module, can connect to POS58 slip printer
10. Optional GPS positioning module, for global positioning satellite positioning;
11. Great stability of data storage, data kept as long as 10 years even with power outage
12. Card Capacity: 91,880,000 pcs;
13. Can check the nearest 20 records, to prevent ticket payment dispute.
Technical specifications:
|
Model: |

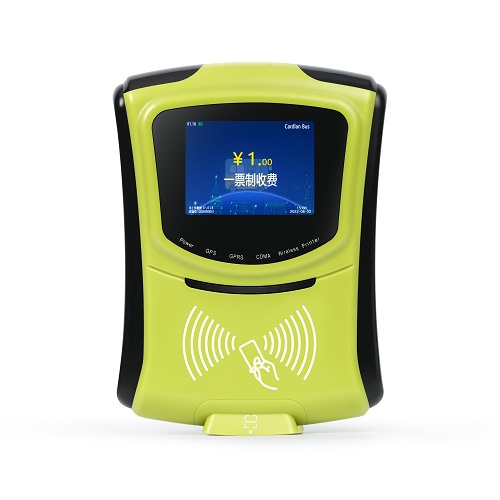

CL1306 bus pos terminal |
|
Dimension: |
200*151*61.5mm |
|
Material: |
Engineering Plastics, Anti static electricity coating design, be protected from high-frequency interference |
|
Display: |
3.5 inch LCD display，320x240 |
|
Operating system: |
Linux 2.6 system |
|
CPU: |
N32905 processor，ARM9 core @ 240MHZ |
|
Memory: |
32MBytes SDRAM，512MB NANDFlash |
|
Data capacity: |
259840 pcs of detailed data for console storage, unlimited data at GPRS storage |
|
Card capacity: |
91,880,000 pcs |
|
Black list: |
91,880,000 pcs (download thru PC with USB) |
|
Working Voltage: |
DC 8V-50V |
|
Operating temperature: |
-40℃~75℃ |
|
Storage temperature: |
-45℃~85℃ |
|
Humidity: |
0-95% RH non condensing |
|
Lighting: |
Red, Green light |
|
Sound prompt: |
Buzzer, single channel speaker (voice report) |
|
Voice report prompt: |
16KHz,16bit single channel voice report prompt |
|

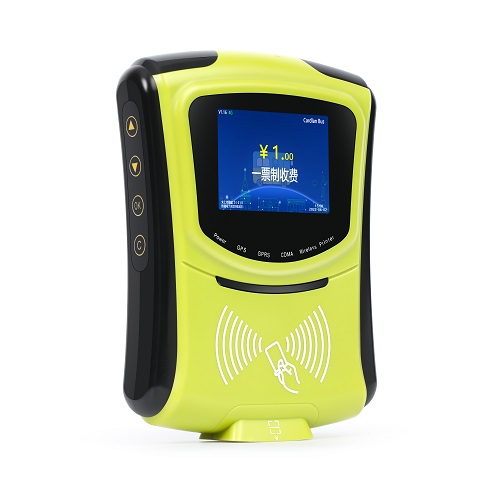

Keypad: |
4 command buttons |
|
RFID: |
Can read and write ISO14443 TYPE A\B Electronic tag (Incl. Combi-Card ) |
|
Read card distance: |
0~50mm |
|
Supporting card: |
Mifare 1 card, Mifare DESfiire card,CPU card, UnionPay IC card |
|
Frequency: |
13.56MHz |
|

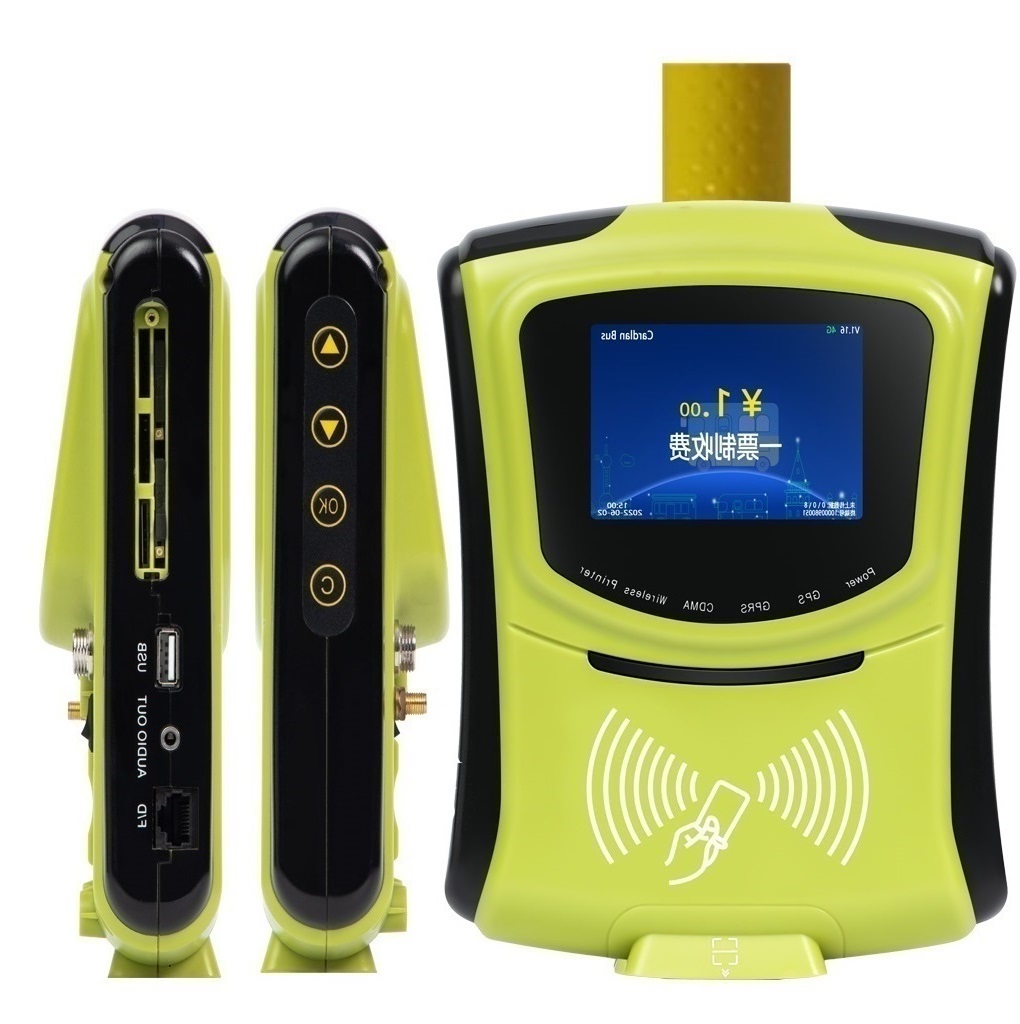

Interfaces/Connectors: |
RS232, RS485, USB |
|
Printer modules: |
Can be connected to slip printer-POS58 |
|
Width of receipt: |
Based on printer configuration |
|
Positioning mode: |
GPS |
|
Power consumption: |
≤10W |
|
Communication Modules: |
GPRS(900Mhz/1800Mhz), or CDMA(800Mhz) |
|
WIFI： |
Supporting 802.11n/b/g standards,150Mbps,2.4Ghz |
|
UnionPay: |
Compatible for PBOC3.0 UnionPay card |
|
Upgrading: |
Connect USB to PC, upgrade with GPRS |
|
Data collection: |
WIFI, GPRS,3G,4G, USB |
