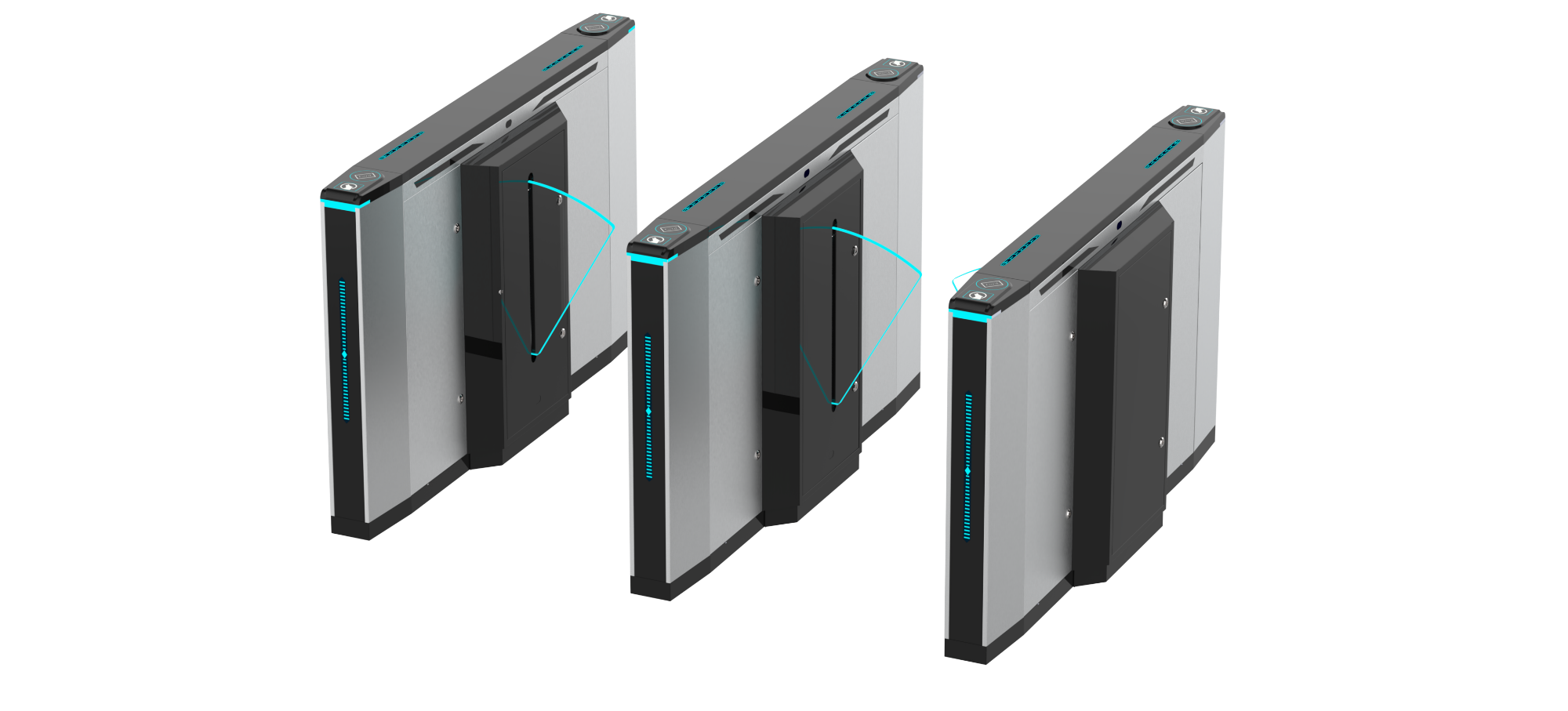

CL-TLX2011 Wing Gate is the latest developed new luxury wing brake, with a tall appearance and high-end wing brake configuration compared to ordinary wing brakes. This device organically integrates mechanical, electronic, microprocessor control, and various identity recognition technologies, making it easy to use and compatible with face recognition, IC card, ID card, barcode card, fingerprint and other card reading and recognition devices. By selecting various identity recognition system devices and adopting reliable security protection devices, alarm devices, direction indicators, etc., it coordinates to achieve intelligent control and management of channels. Divided into: single chip: used for single channel and multi-channel; Dual movement: for multi-channel use.
It is widely used in airports, enterprises, libraries, exhibition halls, subway stations, stadiums, scenic spots, parks and pedestrian passages of units, etc. It can realize offline management system function with smart cards and form unattended management of personnel entering and leaving.

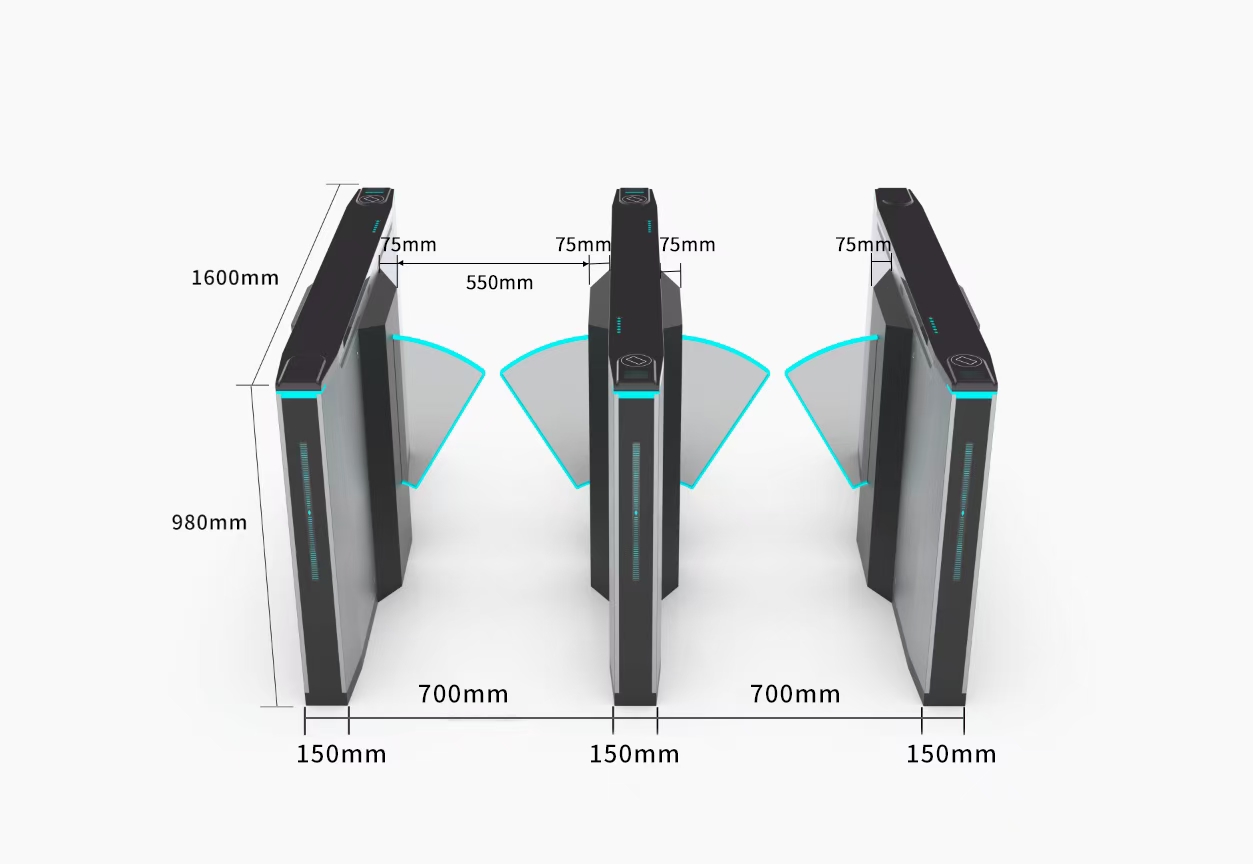

Product size: 1600*300*980mm
Material: SUS 304 stainless steel
Standard channel width: 550mm
Power input: AC220V, 50Hz Driving voltage: DC24V 6.5A
Driving method: DC brushless motor
Direction of traffic: one-way and two-way Opening time: 0.2s
Traffic speed: 25-35 people/minute (normally closed)
Type of card reading: M1 card, CPU card (can only read CPU cards of FM1208-10 models)
