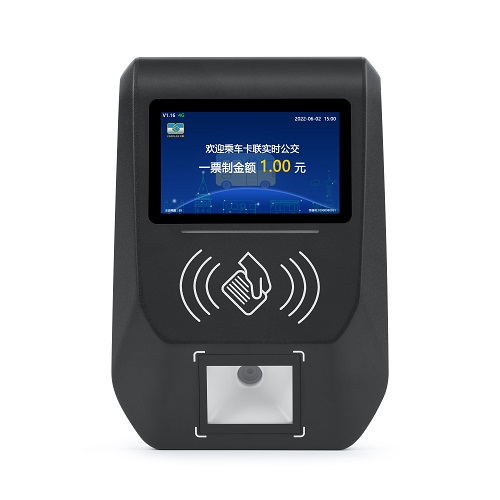

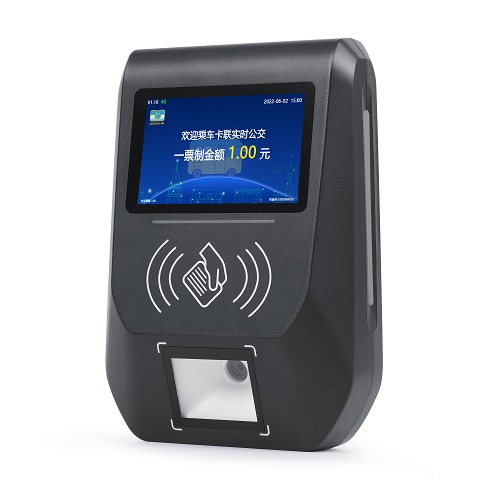

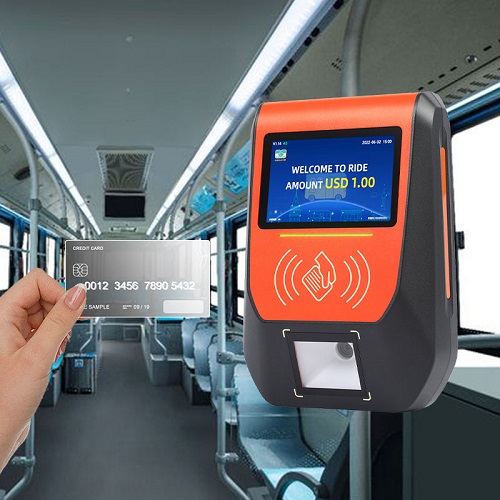

Onboard RFID NFC QR Ticket Validator

Item No.: CL-A0618B-2
CL-A0618B smart bus validator can support RFID card, with GPS positioning module, support 3G,4G, WIFI wireless communication etc.
Description
Description

1. Application

CL-A0618B smart bus validator can support RFID card, with GPS positioning module, support GPRS, WIFI wireless communication etc. Can be used for electronic payment or card validation in following field:

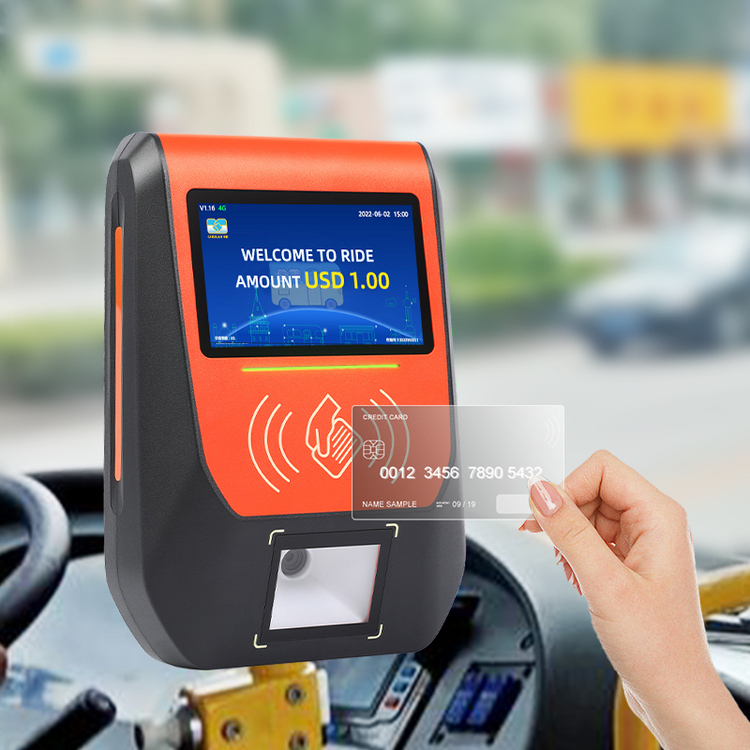

l Public transport fare collection

l Scenic spots/amusement park card payment

l Balance inquiry

l Employee shuttle bus card validation

l Safety school bus system

2. Functional features

l Support wireless communication, remote connect to server management software to realize real time time-revision, black-list downloading and data collection etc.

l Support data real time uploading or USB local data collection

l Support live voice prompts, supports 15 kinds of voice prompts: such as "student card",      "employee card"

l Support consumption details and statistics query, according to card No., time, operator No., etc.

Parameter

Name:

Smart Bus Validator

Operating System

Android5.1

CPU:

Quad-core cortex-a9 main frequency 1.4GHzintegrated GPU Mali-400 MP4

RAM

DDR3  1G(default)

Memory:

eMMC  16G(default)、Max support  64G TF card

Memory Function



Data Capacity:

more than 2 million detailed data for console storage, extensible

Blacklist:

Two hundred millionextensible, more with TF card

Working Environment





Working Temperature:

-25℃~65

Storage Temperature:

-40℃~85℃

Working Humidity:

0-90%(non-condensing

Physical Parameter



Dimension:

240x170x74.7mm

Housing material:

Engineering plastics

LCD Display

Display:

5 inch LCD display, 800*480

Indicator light:

Red and green

Camera



Scanning

Wide angel/QR /customized

Distance

0CM -15CM

Voice Prompt



Sound Prompt:

Buzzer、Single channel loudspeaker

Voice Prompt:

16KHz,16bit single channel voice prompt

Power Supply Specification





Working Voltage:

DC 8V-50V

RFID Function

Support Type:

Can read and write ISO14443 TYPE A\B Electronic tag

Reading Distance:

0~50mm

Working Frequency:

13.56Mhz

Card Capacity:

5,000,000 pcs

Card Type:

Mifare 1 card, CPU card, UnionPay IC card

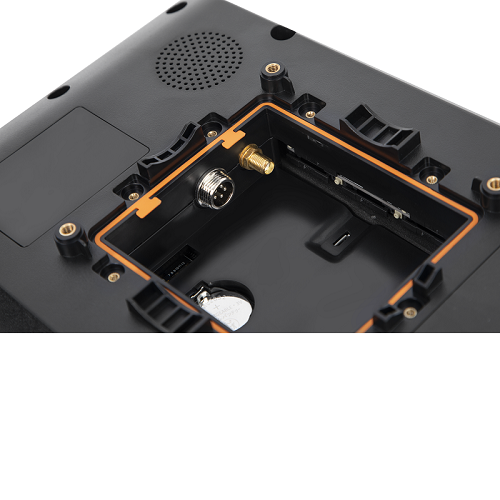

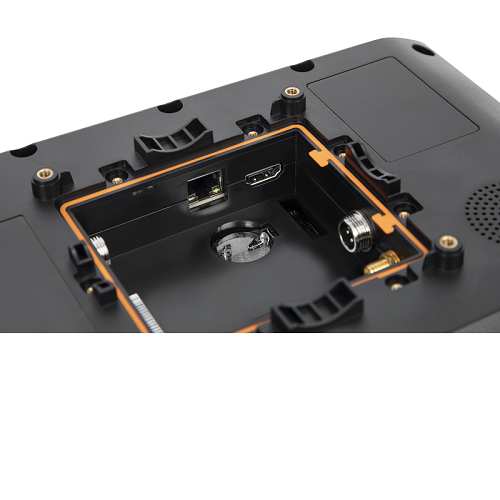

Interface



Communication Interface:

USB-HOST、USB-OTG、RS485 or  TTL-232

Reserved interface:

HDMI

Printing Function



Printing module:

Support external POS58printer (need 5pinaviation plug turn DB9 cable)

Width of receipt::

58mm

Positioning Function



Position way:

GPS, Beidou positioning (Optional)

Working Mode



Working Mode:

Stand-alone or connect to server

Power Consumption



Power Consumption:

≤10 W

Communication Function



Wireless Communication

GPRS.,3G,4G optional

WIFI

Support 802.11n/b/g standard,150Mbps,2.4Ghz

Warning Function



Warning Function

Warning when card balance is insufficient or data memory is full

Data Collection Function

Collection mode

2G、3G、4G and USB collection、WIFi and Bluetooth optional
