CL-A0618 smart bus validator can support RFID card, with GPS positioning module, support GPRS, WIFI wireless communication etc. Can be used for electronic payment or card validation in following field：
l Public transport fare collection
l Scenic spots/amusement park card payment
l Balance inquiry
l Employee shuttle bus card validation
l Safety school bus system
l Support wireless communication, remote connect to server management software to realize real time time-revision, black-list downloading and data collection etc.
l Support data real time uploading or USB local data collection
l Support live voice prompts, supports 15 kinds of voice prompts: such as "student card", "employee card"
l Support consumption details and statistics query, according to card No., time, operator No., etc.
|
Name： |
Smart Bus Validator |
|
Operating System： |
Android5.1 |
|
CPU： |
Quad-core cortex-a9 main frequency 1.4GHz、integrated GPU Mali-400 MP4
|
|
RAM： |
DDR3 1G（default） |
|
Data storage： |
eMMC 16G（default）、Max support 64G TF card |
|
Storage |
|
|
Data Capacity: |
more than 2 million detailed data for console storage, unlimited data with 4G connection |
|
Blacklist： |
2 hundred million，more with TF card |
|
Working Environment
|
|
|
Working Temperature: |
-25℃~65℃ |
|
Storage Temperature: |
-40℃~85℃ |
|
Working Humidity: |
0-90%（non-condensing） |
|
Physical Parameter
|
|
|
Dimension： |
270x169x72mm |
|
Housing material: |
|
|
LCD display |
|
|
Display： |
8 inch TFT-LCD, 1280*800 |
|
Indicator light： |
Red and green |
|
Camera |
|
|
Scanning： |
Wide angel/QR /customized |
|
Distance： |
3CM -15CM |
|
Voice Prompt |
|
|
Sound Prompt： |
Buzzer、Single channel loudspeaker |
|
Voice Prompt： |
16KHz,16bit single channel voice prompt |
|
Power Supply Specification
|
|
|
Working Voltage： |
DC 8V-50V |
|
RFID |
|
|
Support standard： |
ISO-14443 Type A/B |
|
Reading Distance： |
0~50mm |
|
Working Frequency： |
13.56Mhz |
|
Card Capacity： |
5 million pcs |
|
Card Type： |
MiFare Classic, MiFare Desfire, support CPU card |
|

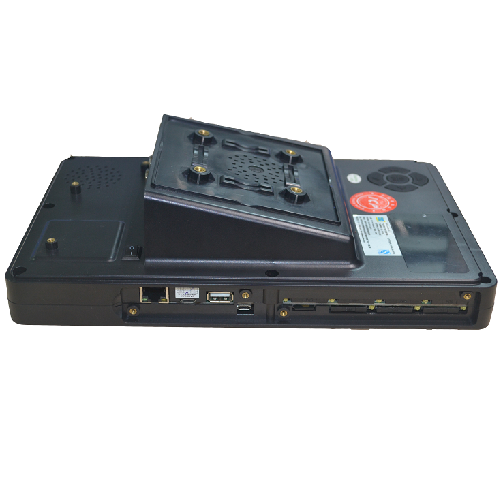

Interface |
|
|
Communication Interface： |
USB-HOST、USB-OTG、HDMI、RS485 and TTL-232 optional |
|
Multi screen interface |
|
|
Printing |
|
|
Printing module： |
Support external POS58printer (need 5pinaviation plug turn DB9 cable) |
|
Paper Width： |
58mm |
|
Positioning Function
|
|
|
Position way： |
GPS、beidou （optional） |
|
Working Mode |
|
|
Working Mode： |
Stand-alone or connect to server |
|
Power Consumption
|
|
|
Power Consumption: |
≤10 W |
|
Communication Function
|
|
|
Wireless Communication |
2G、3G、4G |
|
Warning Function |
|
|
Warning Function |
Warning when card balance is insufficient or data memory is full |
|
Data Collection Function |
|
|
Collection mode |
2G、3G、4G and USB collection、WIFi and bluetooth optional |
