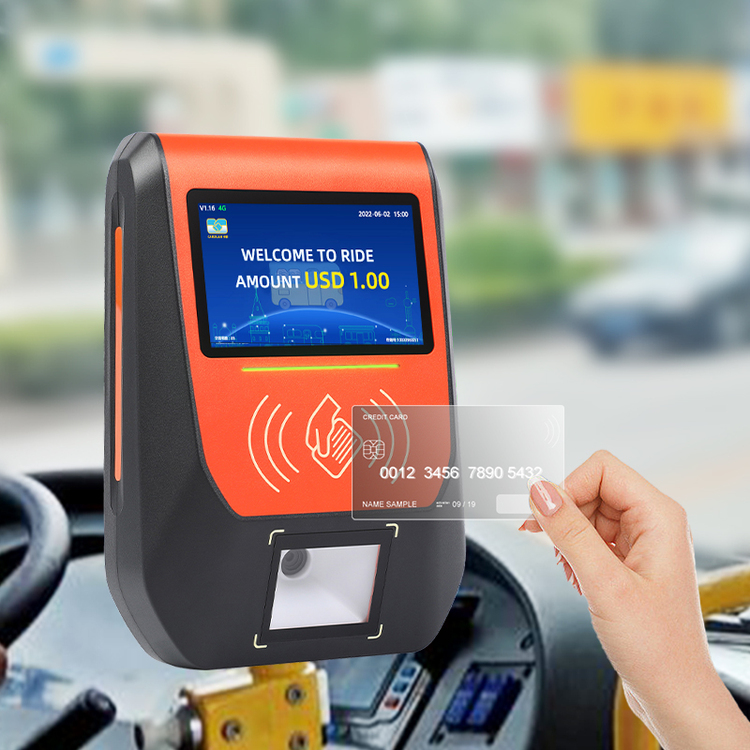

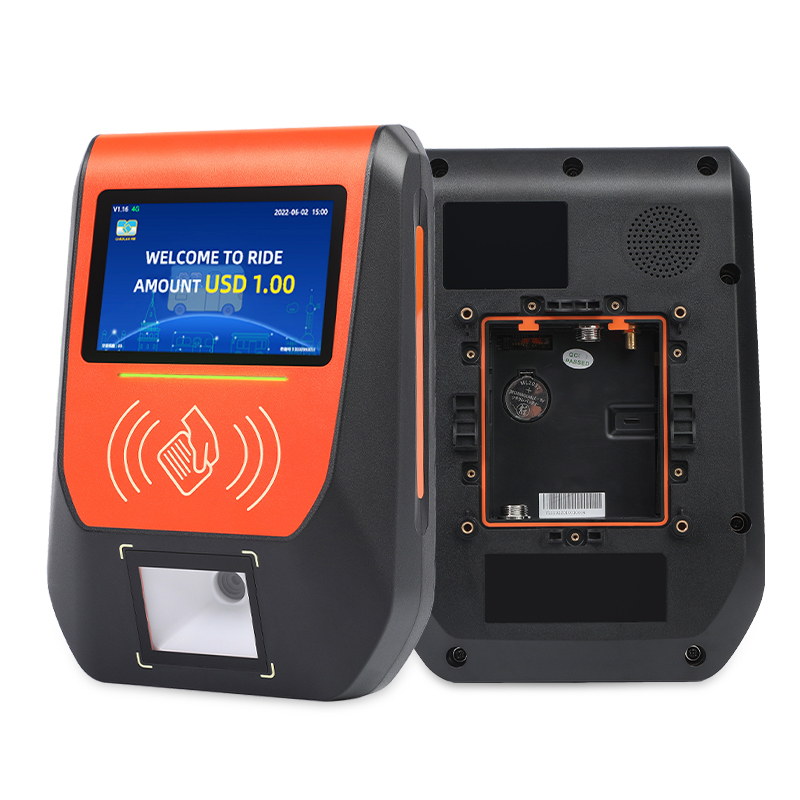

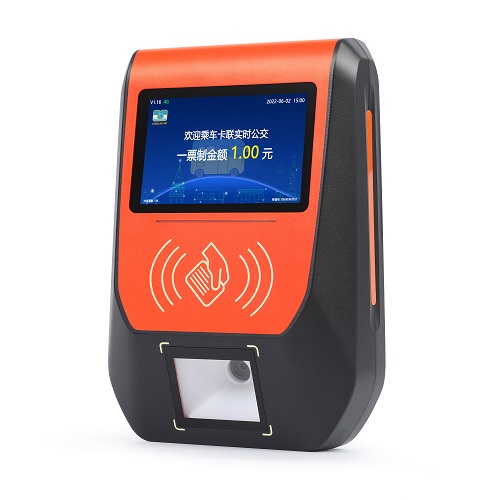

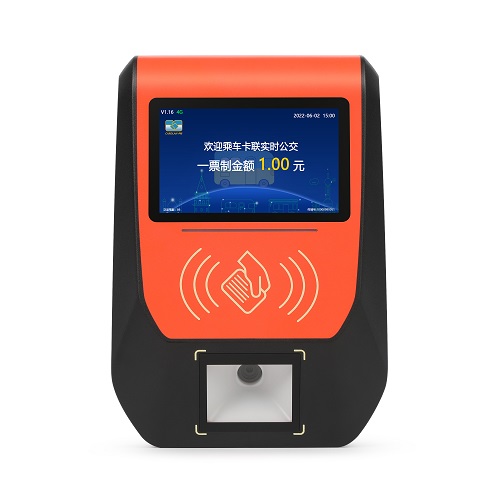

CL-A0618-A smart bus validator can support RFID card, with GPS positioning module, support GPRS, WIFI wireless communication etc. Can be used for electronic payment or card validation in following field：
l Public transport fare collection
l Scenic spots/amusement park card payment
l Balance inquiry
l Employee shuttle bus card validation

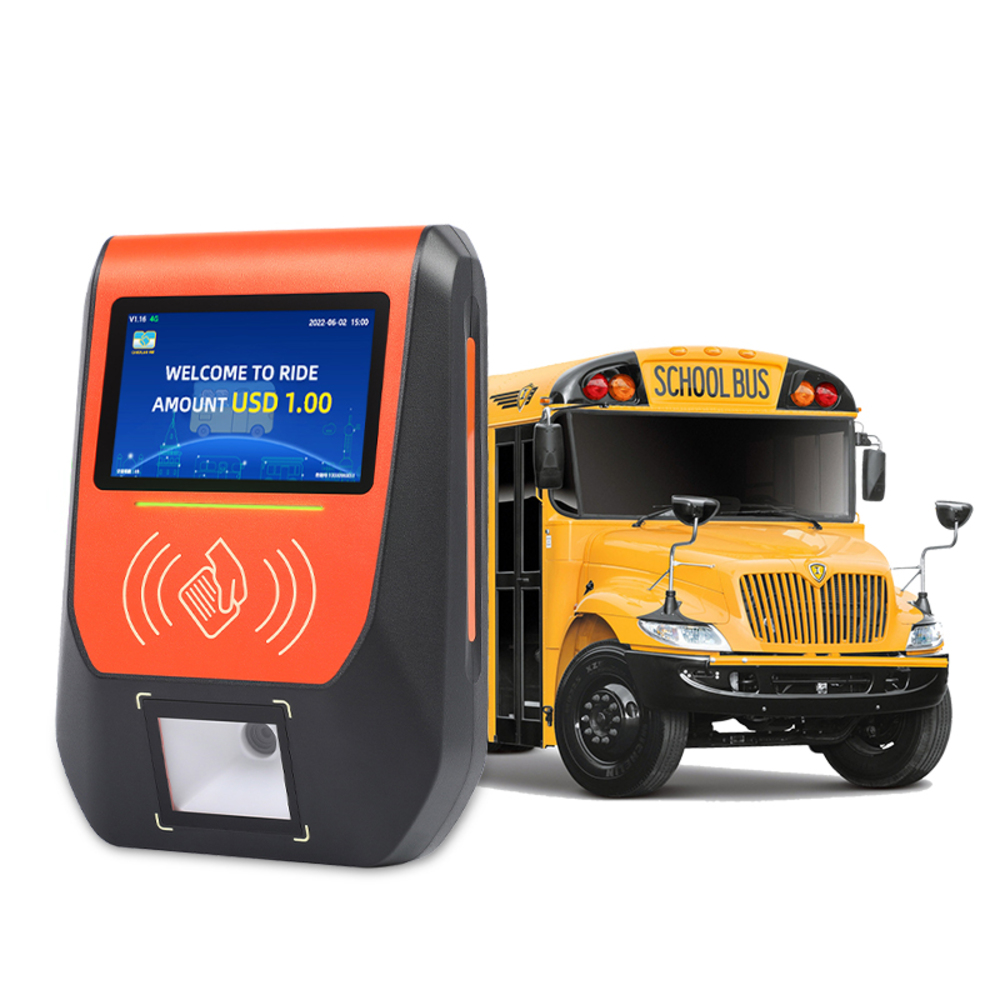

l Safety school bus system
l Support wireless communication, remote connect to server management software to realize real time time-revision, black-list downloading and data collection etc.
l Support data real time uploading or USB local data collection
l Support live voice prompts, supports 15 kinds of voice prompts: such as "student card", "employee card"
l Support consumption details and statistics query, according to card No., time, operator No., etc.
|
Name： |
Smart Bus Validator |
|
|
Operating System： |
Linux2.6.17.14 |
|
|
CPU： |
ARM9 core processor，240Mhz |
|
|
Memory： |
32MBytes SDRAM，512MB NAND Flash main memory,Extend to TF 32G |
|
|
Memory Function |
|
|
|
Data Capacity： |
100000 pcs of detailed data for console storage, unlimited data at GPRS storage |
|
|
Blacklist： |
2,000,000 pcs (download from PC with USB) |
|
|
Working Environment
|
||
|
Working Temperature: |
-25℃~75℃ |
|
|
Storage Temperature: |
-45℃~85℃ |
|
|
Working Humidity: |
0-90%（non-condensing） |
|
|
Physical Parameter |
|
|
|
Dimension: |
240x170x74.7mm |
|
|
Housing material: |
||
|
LCD Display |
||
|
Display： |
5 inch LCD display, 800*480 |
|
|
Indicator light： |
Red and green |
|
|
Keypad Function |
|
|
|
keypad： |
4 operation button, on the rear side of the machine |
|
|
Voice Prompt |
|
|
|
Sound Prompt： |
Buzzer、Single channel loudspeaker |
|
|
Voice Prompt： |
16KHz,16bit single channel voice prompt |
|
|
Power Supply Specification
|
||
|
Working Voltage： |
DC 8V-50V |
|
|
RFID Function |
||
|
Support Type： |
Can read and write ISO14443 TYPE A\B Electronic tag (Incl. Combi-Card |
|
|
Reading Distance： |
0~50mm |
|
|
Working Frequency： |
13.56Mhz |
|
|
Card Capacity： |
5,000,000 pcs |
|
|
Card Type： |
Mifare 1 card, Mifare DESfiire card,CPU card, UnionPay IC card |
|
|
Scanning function |
||
|
Support type |
Support 2D code include QR code, PDF417、Aztec code, Maxicode,MicroPDF417* etc. Support 1D code include code 128, EAN-13,EAN-8.CODE39, UPC-A, UPC-E, Codabar, interleaved 2 of 5, ITF-6, ITF-14, ISBN, CODE 93, UCC/EAN-128, GS1 Databar, GS1 Composite Code, Matrix 2 of5, Code11, Industrial 25, Standard 25, Plessey, MSI-Plessey etc. |
|
|
Reading distance |
70mm~170mm |
|
|

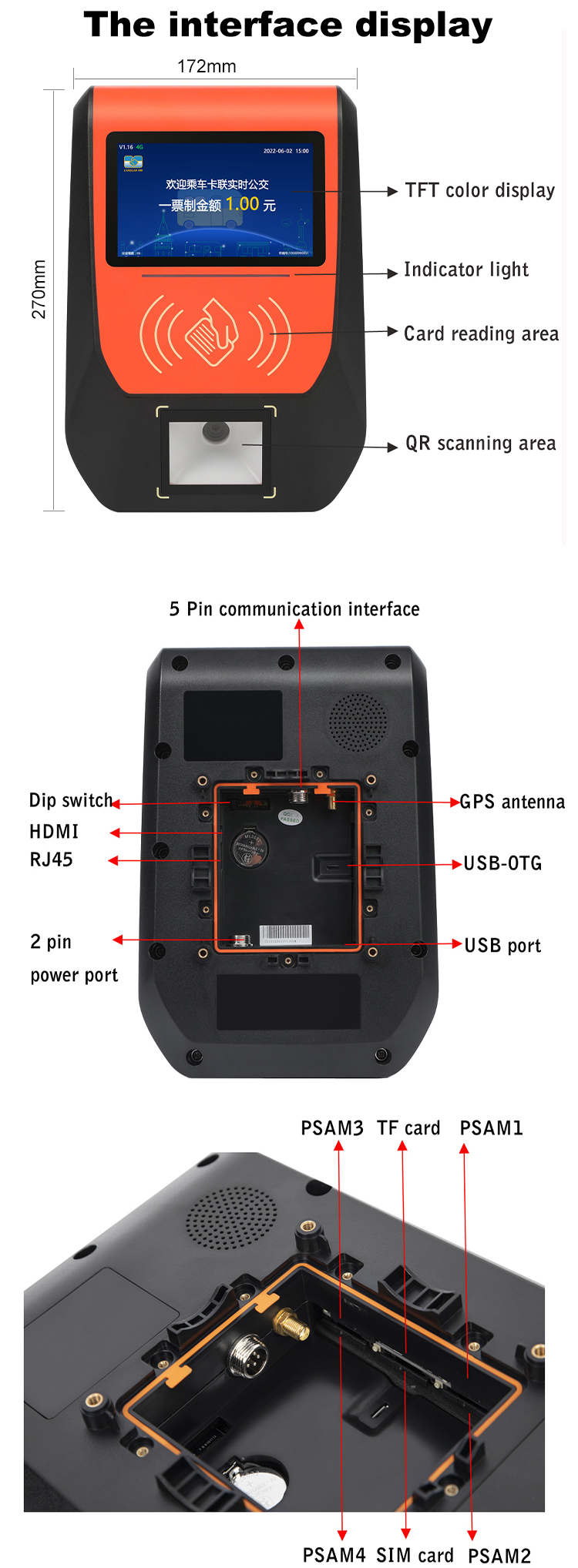

Interface |
|
|
|
Communication Interface： |
USB-HOST、USB-OTG、RS485 or TTL-232 |
|
|
Printing Function |
|
|
|
Printing module： |
Support external POS58printer (need 5pinaviation plug turn DB9 cable) |
|
|
Width of receipt:： |
Based on printer configuration,normally standard 58mm |
|
|
Positioning Function |
|
|
|
Position way： |
GPS positioning |
|
|
Working Mode |
|
|
|
Working Mode： |
Stand-alone or connect to server |
|
|
Power Consumption |
|
|
|
Power Consumption: |
≤10 W |
|
|
Communication Function
|
||
|
Wireless Communication |
2GPRS quad (850/900/1800/1900 MHz) ；2GCDMA(800Mhz)； 4G(2G GSM（850/900/1800/1900 MHz）/ 3GTD-SCDMA（1880-1920MHz/2010-2025MHz)/ WCDMA（2100MHz/1900MHz/850MHz）/ CDMA2000（1920-1935MHz/2110-2125MHz）； 4G TDD-LTE（1900MHz/2300MHz/2600MHz）/ FDD-LTE（1800MHz/2600MHz） |
|
|
WIFI |
Support 802.11n/b/g standard,150Mbps,2.4Ghz |
|
|
Warning Function |
|
|
|
Warning Function |
Warning when card balance is insufficient or data memory is full |
|
|
Data Collection Function |
||
|
Collection mode |
2G、3G、4G and USB collection、WIFi and Bluetooth optional |
|
